HTC Vive Focus 3 Sample

Install Vive Wave XR Plugin

  1. Install by following the tutorial: https://developer.vive.com/resources/vive-wave/tutorials/installing-wave-xr-plugin-unity/
  2. Make sure after installation you have the following packages under Window => Package Manager.
    HTC Vive Focus 3 Sample

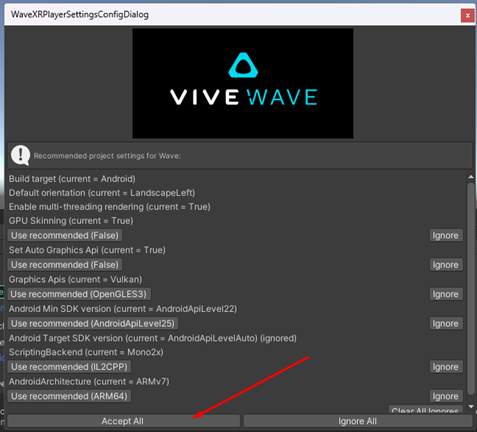

  3. Accept all Vive Wave improvement suggestions:
    HTC Vive Focus 3 Sample

HTC Vive Sample Setup

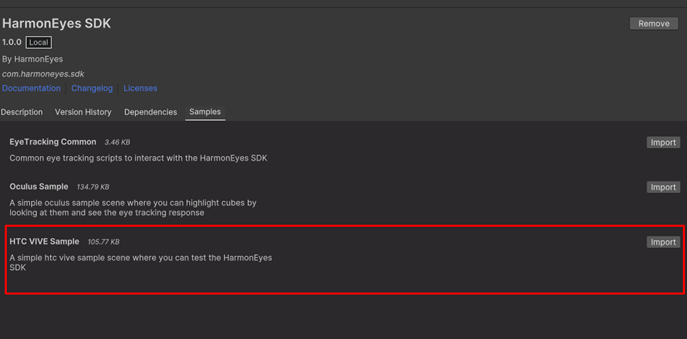

  1. Navigate to the Samples tab and click Import next to “HTC Vive Sample”.
    HTC Vive Focus 3 Sample

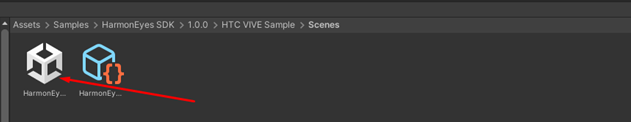

  2. Open HarmonEyesDemoHTCViveScene.Unity.
    HTC Vive Focus 3 Sample

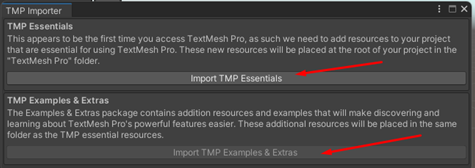

  3. Import TMP Essentials and TMP Examples & Extras when prompted.
    HTC Vive Focus 3 Sample
  4. Resolve any outstanding issues.

Note: Sometimes you need to restart the Unity Editor & Reimport the sample to fix any non-loaded scripts

License Key

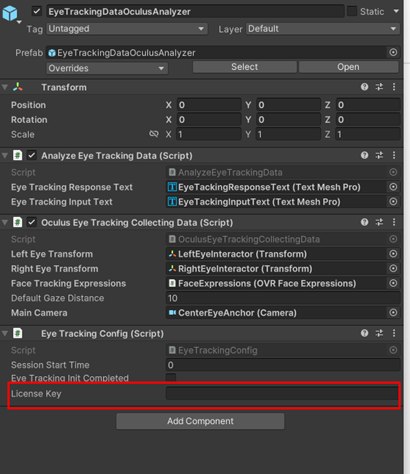

  1. Select the EyeTrackingDataOculusAnalyzer prefab.
  2. In the EyeTrackingConfig script, enter your license key.
    HTC Vive Focus 3 Sample

Build Project

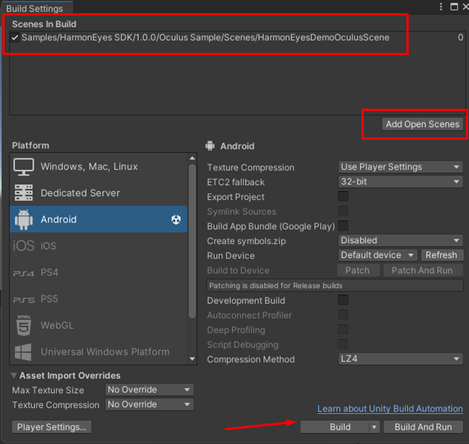

  1. Under the Build Settings click Add Open Scenes to the project and click Build.
    HTC Vive Focus 3 Sample
